The New NSMT Model 10S
Ultra Definition Minimonitor

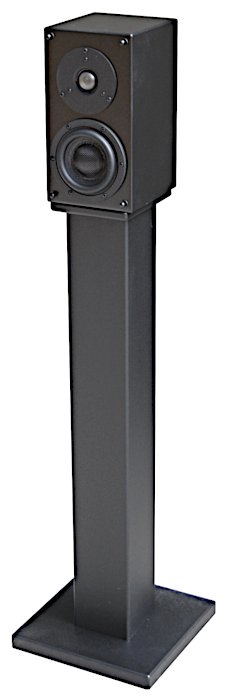

Measuring only 10 inches high, by 5.5 inches wide by 6.5 inches deep, the NSMT Model 10S, formerly NSM Audio Model 10S, is a full range loudspeaker that produces smooth, full-bodied, satisfying sound, even at very low volume. It produces solid accurate bass and an accurate three-dimensional, holographic soundstage. The sound is realistic because of the Model 10S’ ability to generate a big soundstage, with instruments and voices produced in faithful proportions.

The Model 10S is a two-way, true minimum phase, point source, loudspeaker system. No phase or impedance correction circuits are used in the loudspeaker in order to provide a clean direct path between the amplifier and the loudspeaker. Voiced to perform like a floor standing loudspeaker, the amazing capabilities of the Model 10S are immediately obvious to the listener.

Considered revolutionary when it was introduced in 1992, the Model 10S has undergone numerous improvements and refinements over the years. Today it is one of the most refined small loudspeakers, and its exceptional performance and its high built quality have been acknowledged by numerous industry observers, in the United States, Western Europe, and Asia.


SPECIAL FEATURES:
Design: two-way, first-order, acoustic suspension
Drivers: 1 inch soft dome, ferro-cooled Morel tweeter, 5 inch cast magnesium frame, SEAS long-throw, woofer
Crossovers: first-order, perfect lay air core copper inductor, film-foil capacitor, non-inductive wire wound resistor
Wiring: pure multi-strand OFC copper to tweeter and woofer
Cabinet: cross-braced acoustic suspension
Connectors: Superior Electric BP30-2BR-B fully insulated, gold plated five-way binding  posts
10-year limited warranty

SPECIFICATIONS:
Dimensions:  5.5 X 10 X 6.5 (W x H x D)
Frequency Response: 60Hz-20kHz, +/- 3dB
-6dB referenced to 1kHz: 55Hz.
Sensitivity: 87dB 1/watt/m
Rated Impedance: 8 ohms
Cabinet construction: Cross-braced half inch MDF or wood board
Finishes: satin black lacquer (optional wood finishes)
Weight: 16 pounds per pair
Recommended amplifier: 45-200 watts

See sale price above
Price: $1,495 per pair



Excerpts from Reviews


"...crafted with jewel-like precision." (The Absolute Sound)



"Absolutely astonishing!" (Stereo, Germany, review of NSMT10S with Linn Classic)

"...breathtaking..." (Hi-Fi News, Britain)

"...it is so smooth that I began to refer to it as tubelike." (Soundstage.com)

"...I judged the NSMs performance to be slightly better than the B&W [801] reference speaker." (Audio)

"...can put to shame a great many larger loudspeakers with its unpretentious musicality." (The Absolute Sound)



"Its strengths include a lush and liquid presentation that does stellar things for vocals." (Soundstage.com)

"...a small sensation." (Stereo, Germany, review of NSMT10S with Linn Classic)



"How good are these speakers?...Very good indeed....Am I selling my Gallo Ref 3's? No. Did I put these in the bedroom after all? Not yet. They are right next to the Gallo's in the living room and have been for the past two weeks. I'm sure I'll eventually switch back over, but for now I'm in sonic bliss." (Audio Asylum)

"During my audition I actually had no desire for a subwoofer when playing the 10S. And this is with them in a 15' W X 21' L X 10' H open concept living room. Impressive for a speaker that can be held in one hand." (Audio Asylum)



"I have never heard better imaging, and I have carefully listened to many systems over the years, starting in the mid-1950s. I would compare it somewhat to Quad ESLs, but with better bass."

(Audioreview.com review by George Stewart of 10S Armada System)



(10S Armada System with two subwoofers)
